layered belt unit

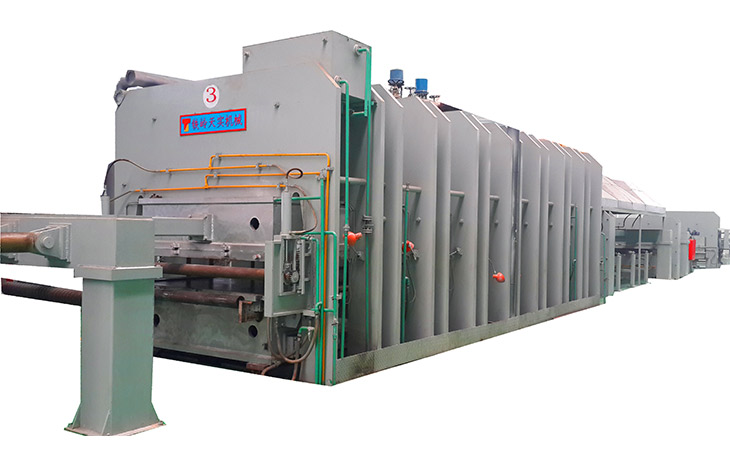

Fabric core conveyor belt flat vulcanization production line Technical parameters / name

Performance parameter	1000X10000X2	1200X10000 (12600)X2	1400X10000 (12600)X2	1600X10000 (12600)X2	1800X10000	2200X10000	2400X10000
Nominal mounding forceMN	35	42/52.92	49/61.74	56/70.56	63	77	84
Hot plate specifications （LXW)mm	1000X10000	1200X10000 (12600)	1400X10000 (12600)	1600X10000 (12600)	1800X10000	2200X10000	2400X10000
Hot plate unit pressureMPa	3.5	3.5	3.5	3.5	3.5	3.5	3.5
Cylinder diametermm	500	420	500	600	600	600	650
Number of cylinders	10	18	16	16/20	16/20	16	16/18
Clamping forceKN	500	700	900	1100	1200	1500	1700
Tensile forceKN	500	700	900	1100	600	750	850

1200X12600X2 Batching label specification(2 sets)
1200X12600X2 Batching label specification(2 sets)
Number	Model	Name	Quantity	Material	Remarks
1	GB/T799-1998	Anchor bolt M20X500	20	Level 4.8
2	GB/T5780-2000	bolt M12X50	16	Level 4.8
3	GB/T41-2000	screw nut M12	8	Level 5
4	GB/T41-2000	screw nut M20	20	Level 5
5	GB/T95-2002	washer12	24	100HV
6	GB/T95-2002	washer20	20	100HV
7	STO40-50 VT4 45X45U	Safety chuck (passive end)	2	Finished product	Chaoyang Sanchuang
8	STW40-50 VT4 45X45U+M-8/B(Powered)	Safety chuck (active end)	2	Finished product	Sprocket pitch 19.05 teeth 42
8	STW40-50 VT4 45X45U+M-8/B(Powered)	Safety chuck (active end)	2	Finished product	Sprocket pitch 19.05 teeth 42
9	GB/T1243-1997	Chain (12A) 105 saves 2m	2	Finished product	Pitch 19.05
10	TK58-Y2.2-4P-15.22-M1-I-A	Spiral bevel gear reducer	2	Finished product	Zhejiang Tongli
11	GB/T37-1988	T-bolt M12X60	8	Level 8.8
Fiction:Yang Chengren Date:Jan.10th 2018 Review: Date:
Fiction:Yang Chengren Date:Jan.10th 2018 Review: Date:

1200X12600X2 batcher plus parts details（two sets）
1200X12600X2 batcher plus parts details（two sets）
Number	Drawing number	Name	Quantity	Material	Remarks
1	TS1802-09-00	Rolling device (left drive)	2	Component
2	TS1711-2-1-00	Stand	2	Weldment
3	TS1711-2-1-1	Bottom plate	2	Q235-A
4	TS1711-2-1-2	Rectangular square tube	4	Q235-A
5	TS1711（左）-2-2-00	Bracket (left drive)	2	Weldment
6	TS1711-2-2-1	Bottom plate	2	Component
7	TS1802-09-01	45 square steel	2	45
8	TS1711-2-3-00	safety cover	2	Q235-A
9	TSG1396-01	Reducer sprocket	2	45
10	TS1415-04-02	T-slot plate	4	Q235-A
Fiction:Yang Chengren Date: Jan.10th 2018 Reivew: Date:
Fiction:Yang Chengren Date: Jan.10th 2018 Reivew: Date:
